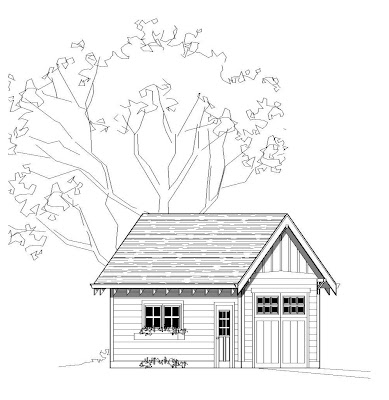

The Ash series are our entry level garages, for when you need a single car detached garage or a classy looking shop or storage space. The Ash can squeeze in just about anywhere with a footprint of 12 feet wide and 20 feet deep. An 8 foot garage door is specified. If space is at a premium and you need your car and storage in one handy building, consider the Ash A. This brother to the Ash has been to the gym a few more times and eats his Wheaties. The 'A' is 16 feet wide and comes with a 12 foot wide garage door. Plenty of room to get your car, motorcycle, ATV, gaudy Christmas decor, and maybe even a couple of tools.

Both garages are framed with 2x4 walls for maximum floor space. If you preferred to stick frame the roof you could gain extra storage in the rafters. You might also inquire of your truss company about using attic style trusses, especially for the Ash A. You might have limited headroom, but you could get your Christmas decor out of site and throw it up above.  The roofs are 12:12 pitch, but of course you can change that to suit your needs.

This plan is sold with a slab style foundation included. If you need to modify to a suspended garage, please contact an engineer local to your area.  At this time, we will not make custom revisions to the plan. However, if you would like to make suggestions to improve the plan, we would love to hear your comments. If you simply must have something changed, consider purchasing the Erasable Vellum or CAD file.



Ash G101
Ash A G101A

All plans include four elevations, floor plans, foundation plans, at least two building sections, framing plans for the second floor and/or roof, and notes and construction details. This is everything you will need to build, but may not be everything you need to get a permit. Electrical layouts, cabinet elevations and engineering are not included.
